Rock tumbler not turning or keeps stopping: causes and fixes

Rock tumbler troubleshooting table: symptom, cause, fix

Find the row that matches what the machine is doing right now. Rows run from most to least likely on a tumbler that worked before and has stopped mid-batch.

Why won't my rock tumbler spin when the motor runs?

If the rollers turn and the barrel sits still or creeps, the barrel is slipping. The usual reason is water or slurry on the outside of the barrel or on the rollers, often from a lid that seeps. See why a rock tumbler leaks if the barrel is wet every time you check it.

Lift the barrel off, wash the outside with a soapy cloth, rinse it, dry it, and wipe the rollers dry. Do not use solvents or a dishwasher on a rubber barrel. A barrel that has gone shiny and slick with age can be roughened lightly with very fine sandpaper, around 400 grit, so the rollers grip again. The Lortone and Highland Park manuals both describe this fix.

Note.Never put oil on the rollers or on the outside of the barrel. Oil belongs only in the shaft bearings, one drop at a time.

Overloaded barrel: how full is too full?

A barrel's rating counts everything inside it: rock, water and grit. A 3 lb barrel holds about 2 lb of rock. Past the rating the motor strains, the belt slips and the barrel slows or stalls, usually soon after you set it on the rollers. The Lortone manual lists a barrel that is too heavy as a direct cause of a barrel that will not turn.

Fill between 1/2 and 3/4 of the barrel, with about 2/3 as the target, and add water only to just below the top layer of rocks. Weigh the loaded barrel on a kitchen scale if it stalls. The grit calculator gives rock and grit amounts by barrel size.

How to fix a rock tumbler belt that slipped or stretched

If the motor runs and the drive roller does not, the belt is off, loose or broken. Belts are a wear part. On Lortone and Harbor Freight machines the motor slides on its mount, so the belt can be tightened as it stretches.

1. 1

   Unplug the tumbler and take the barrel off. Remove the belt cover: on a Lortone 3A that is the top cover, on the Harbor Freight dual-drum it is the screen under the base.

2. 2

   Look along the whole belt. Cracks, a shiny glazed face, frayed edges or a belt lying loose in the housing mean it needs replacing, not tightening.

3. 3

   To tighten, loosen the 2 motor mounting nuts, slide the motor away from the drive pulley to take up the slack, and tighten the nuts again.

4. 4

   Press the middle of the longest span with one finger. The Harbor Freight manual gives about 1/8 inch of give for its belt. Use your own manual's figure if it has one.

5. 5

   Refit the cover, set the loaded barrel on the rollers and watch it for 10 minutes. If it still slows under load, fit a new belt.

Note.Tight enough to drive the barrel and no tighter. Lortone warns that an over-tight belt wears out the motor bearings and stretches the belt.

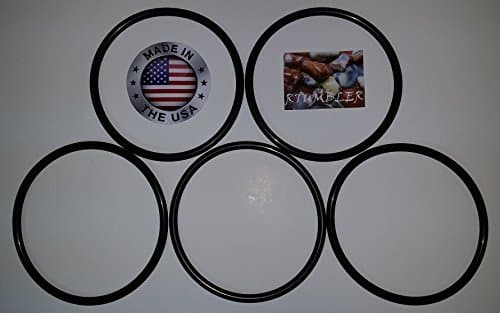

Find the right replacement belt →

Why does my rock tumbler keep stopping?

A tumbler that runs for a while, stops, and starts again by itself has a thermally protected motor that is getting too hot. Thumler's motors, for example, shut off automatically when they overheat. A motor that feels hot to the touch is normal, according to Lortone. One that cuts out is not.

Heat comes from extra load or trapped air. Check for an overloaded barrel, an over-tight belt, dry shaft bearings, dust in the motor vents, a long thin extension cord, direct sun, a hot shed, or a quiet box with no ventilation. Unplug it, let it cool fully, fix the cause and restart. Oil each shaft bearing with one drop of light oil about every 30 days of running.

National Geographic rock tumbler not working: kit checks

Kit tumblers add two causes that hobby machines do not have. First, the timer: when it counts down to zero the barrel stops by design, so set the days again. Second, some kit tumblers, including National Geographic models, have an overload sensor that switches the motor off when the barrel is too heavy. The usual reset is to take some rocks out, unplug the tumbler and plug it back in.

Kit motors are small, so keep the barrel at 1/2 to 2/3 full and check the belt the same way as above. This site is independent and not affiliated with National Geographic, so follow your manual where it differs. Settings and amounts are on the National Geographic tumbler instructions page.

Which part to replace, and when

Most stalled tumblers need cleaning or adjusting, not parts. Order belts and barrels by tumbler model, because sizes are not interchangeable between brands.

How to stop it happening again

A tumbler runs around the clock for weeks, so small habits matter. These five checks at each grit change cover every cause on this page.

• Dry the outside of the barrel and the rollers every time the barrel goes back on.
• Keep the load at about 2/3 full and inside the barrel's weight rating, counting water and grit.
• Check belt tension at each grit change, and keep one spare belt for your model.
• Oil each shaft bearing with one drop about every 30 days of running, then wipe off any excess.
• Give the motor open air on all sides: no direct sun, no closed cabinet, no sealed box.

Quick answers

Short answers to the most common questions about a rock tumbler that has stopped. Each one points back to a cause and fix covered above.

• Why is my rock tumbler not working at all? Check power first: try another outlet with no extension cord. If there is no hum with good power, the motor has likely failed.
• Why does my rock tumbler keep stopping? The motor is overheating and its thermal cutoff is tripping, or a kit timer or overload sensor is shutting it off. Lighten the load and give it air.
• Why won't my rock tumbler spin when it hums? The barrel is slipping on wet rollers or the belt is loose. Dry the barrel and rollers, then check the belt.
• How do I fix a rock tumbler belt? Unplug it, loosen the 2 motor mounting nuts, slide the motor to take up the slack and retighten. Replace a cracked or glazed belt.
